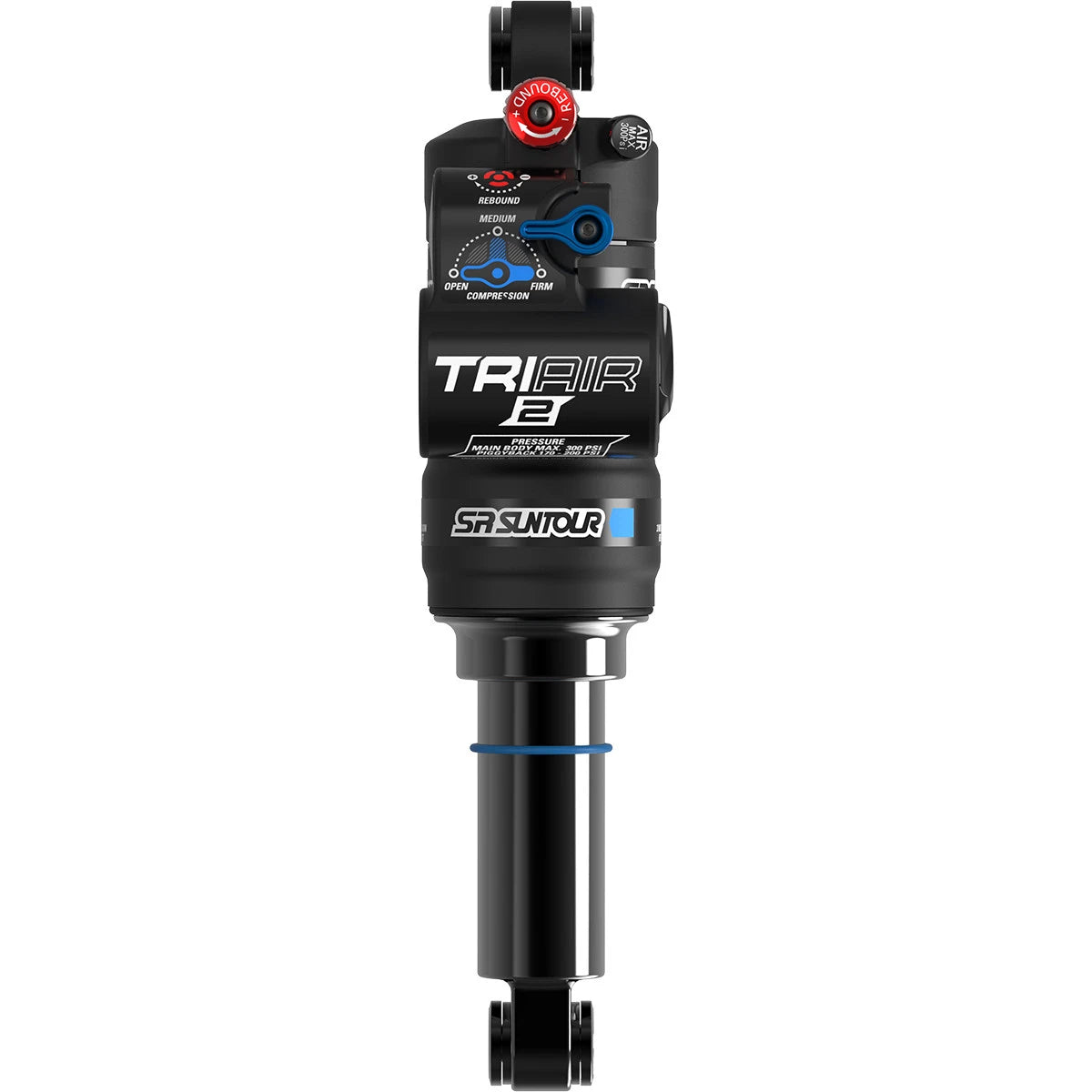

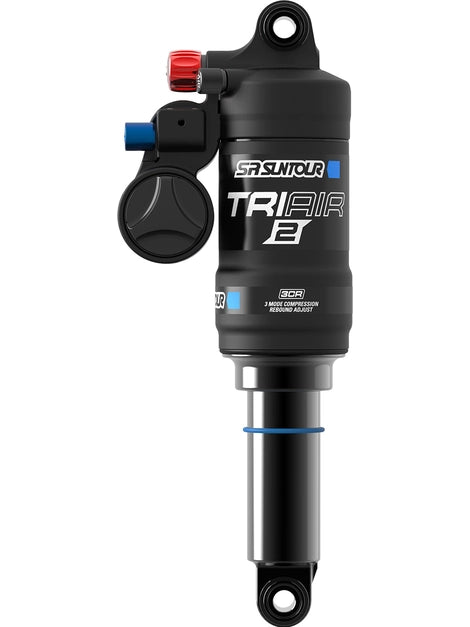

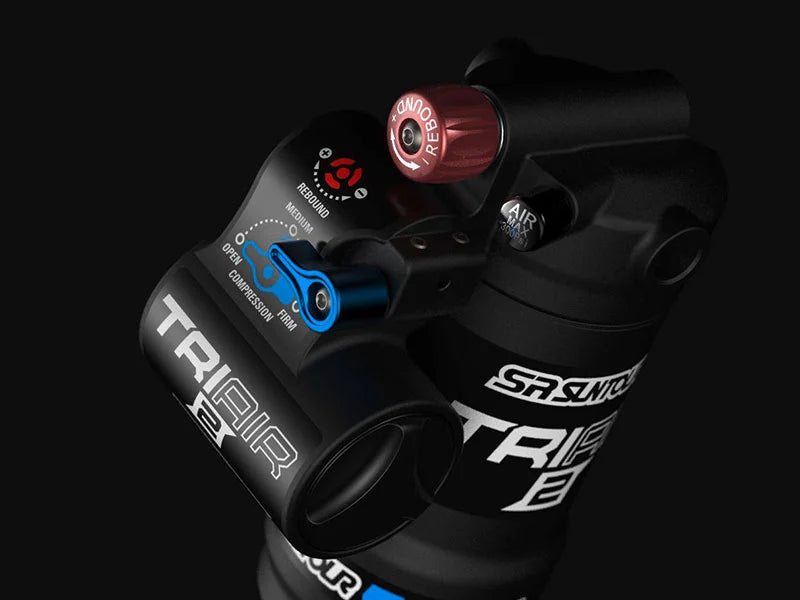

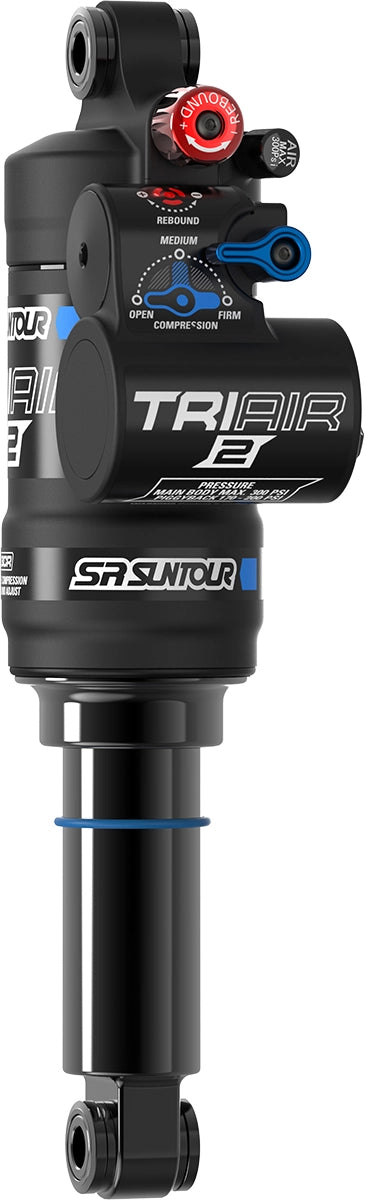

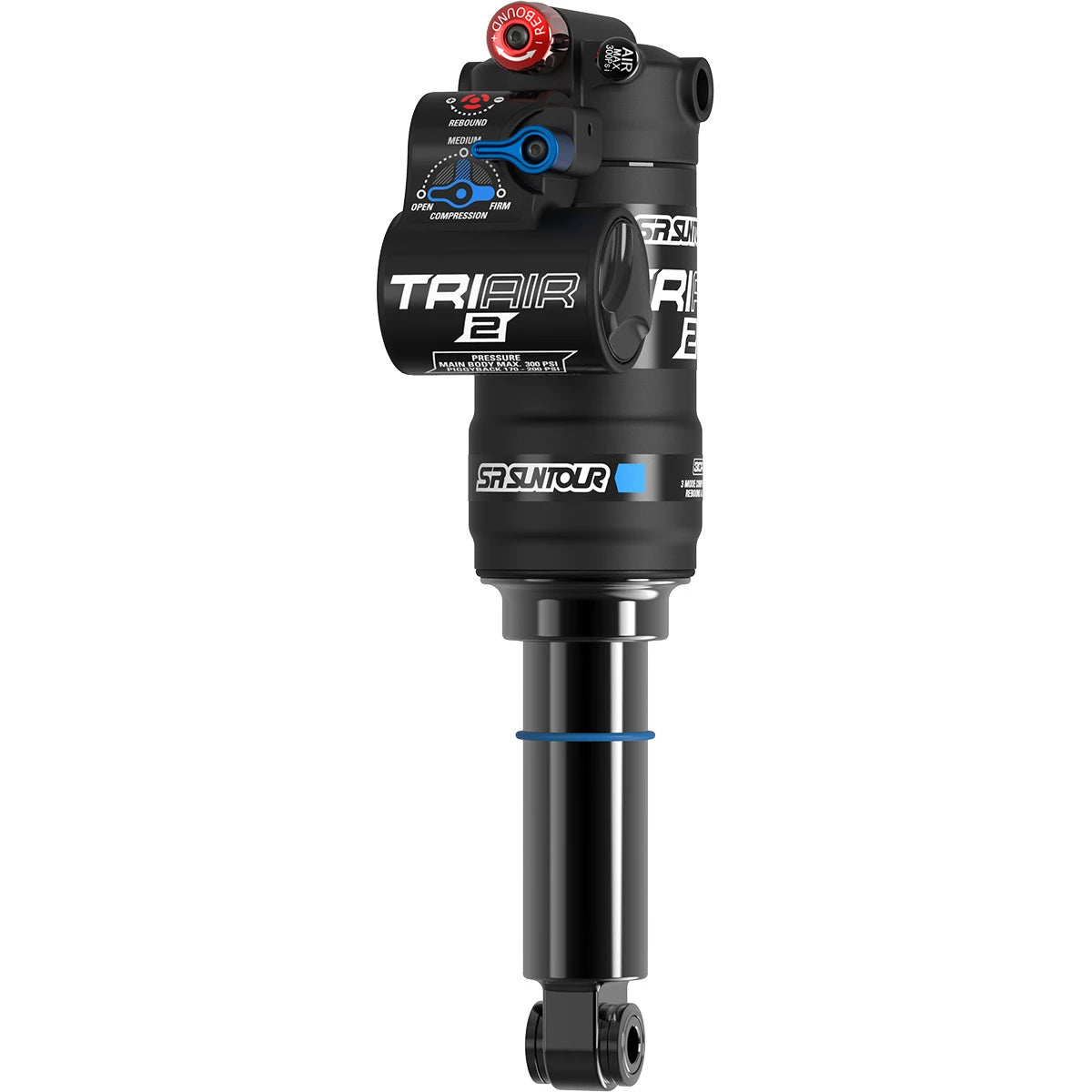

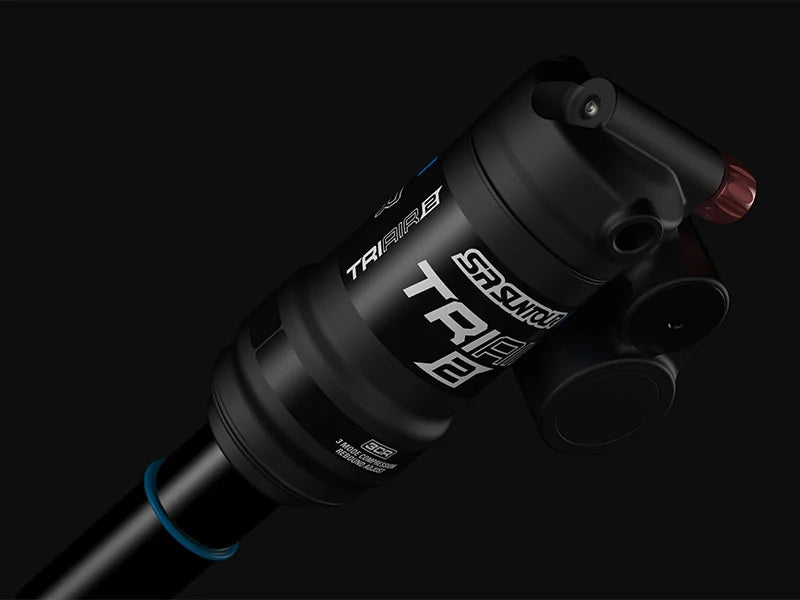

RS24-TRIAir2 3CR LVN 190 x45mm


TRIAIR2 - Establish Traction
Key features
- 3CR with open, medium
and firm compression mode
- 8 click rebound
- Easy volume spacer adjust
- IFP System (Internal Floating piston)
- Metric and Trunnion models
Split second reactions to rapidly approaching terrain must be translated smoothly through the bike for the rider to have genuine control. The TRIAIR2 was designed to handle the abuse of long, challenging descents while maintaining consistent damping, holding a steady line. The TRIAIR2 has a redesigned piggyback to allow for better oil flow and clearance with more bikes. Also features an air-backed IFP, riders can adjust this as well as easy volume spacer adjustment to dial in the desired spring curve. The 3CR damping allows for 3 position compression adjustment and 8-clicks of rebound range to create the proper balance between fork and shock. TRIAIR2 is QSP designed for reliability and serviceability, and is the perfect match for the DUROLUX, AURON, and AION forks.
TRAVEL
|
Standard Mount
|
190 x 45
|
ADJUSTMENTS
|
Low Speed Rebound
|
8 Click Adjustment
|
Low Speed Compression
|
3 Position Adjustment | Open/Medium/Firm
|
High Speed Rebound Tuning
|
Internal Shim Stack
|
High Speed Compression Tuning
|
Internal Shim Stack
|
Spring Curve |
Rubber Spacers |
IPF Pressure
|
Schrader Valve
|
AIR CAN TYPE
|
SV
|
Small positive air volume and small negative air volume
|
LVN
|
Small positive air volume and Large Negative air Volume.
|
