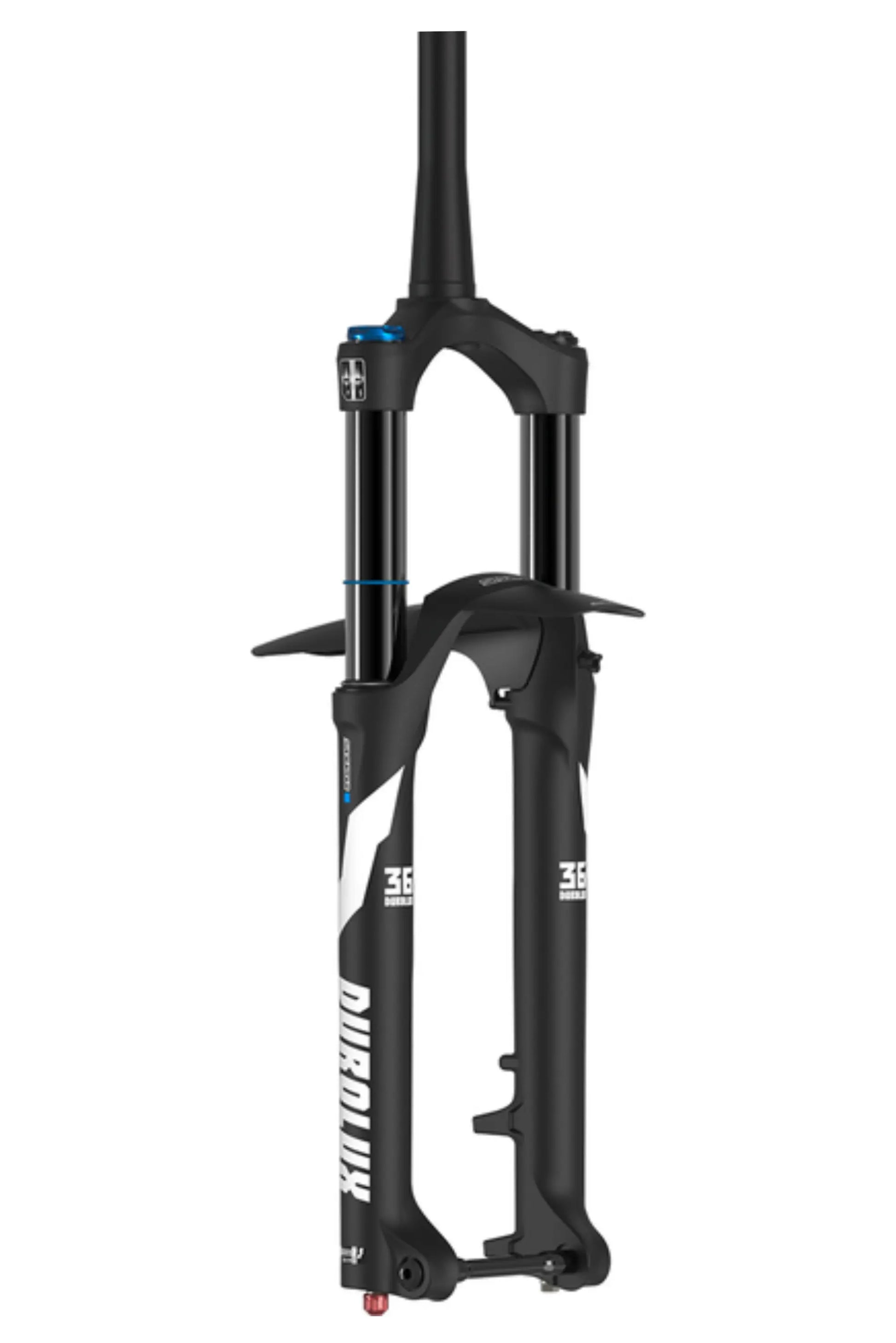

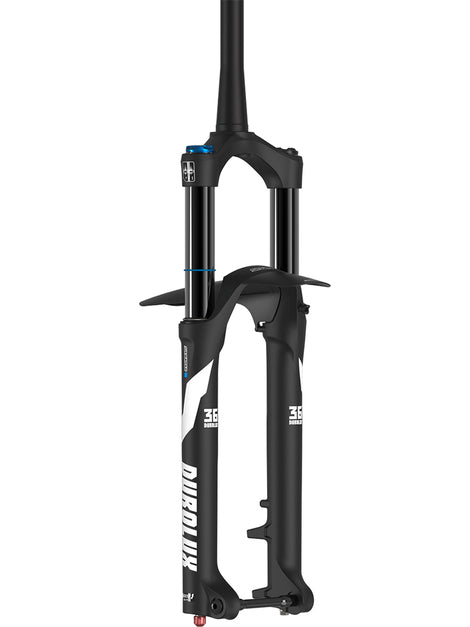

SF25-DUROLUX36X-EVO | eMTB/All Mtn
X = E-BIKE READY
- Available in 150 and 160 mm travel
- Max suggested tire size: 29" x 2.6"
- SKF Seals
- Lubrication Ports
- Integrated Fender
- RC+ semi-open oil bath damper
- Air spring with tokens to adjust the positive chamber air volume
- X version for e-bikes with a solid crown and ABS Mount
The DUROLUX36X has all the things you´ve came to expect from the DUROLUX line like hard 36mm A7000 stanchions, an E-Bike rated crown, SKF seals, QSP ports and an integrated fender but it now comes in extra juicy with our new extra-flow RC+ Cartridge and semi open oil bath. RC+ has easy rebound and compression adjustability tuned for amazing small bump compliance while still being highly efficient. With extra oil volume flow the RC+ PCS Cartridge can handle the biggest hits even easier with our quickest ever damper response time while keeping composure on the steepest terrain. External low speed compression and rebound adjustment, internal shim based high speed compression and rebound management means less knobs and more control. The RC+ Cartridge was developed by SR SUNTOUR engineers and top professional riders as part of our WERX program.
TRAVEL |
|
Standard |
150/160mm (Internally Adjustable) |
GEOMETRY |
|
Axle to Crown |
|
Fork Offset (Rake) |
44mm |
Brake Mount |
Post 180mm |
Max Rotor Size |
220mm |
CROWN |
|
Steerer Tube Size |
Tapered 1 1/8'' - 1.5'' |
Colour |
Black (matt) |
Material |
Forged Aluminium |
LOWERS |
|
Colour |
Matt Black |
Dropout |
15QR BOOST (Standard) |
Axle |
15AH2-110 |
ABS Mount |
Yes |
Material |
Magnesium |
STANCHIONS |
|
Diameter (Ø) |
36mm |
Material |
A7000 Aluminum |
Finish |
Hard Anodized Black |
ADJUSTMENTS |
|
Low Speed Rebound |
27 Click Adjustment |
Low Speed Compression |
15 Click Adjustment |
High Speed Rebound Tuning |
Internal Shim Stack |
High Speed Compression Tuning |
Internal Shim Stack |
Air Volume Adjustment |
Soft Rubber Tokens |
Lockout |
|
OTHER FEATURES |
|
Damping |
RC+-PCS |
Spring type |
AIR(EQ) |
Negative spring |
Self-Balancing EQ air |
WEIGHT |
|
Standard version |
|
