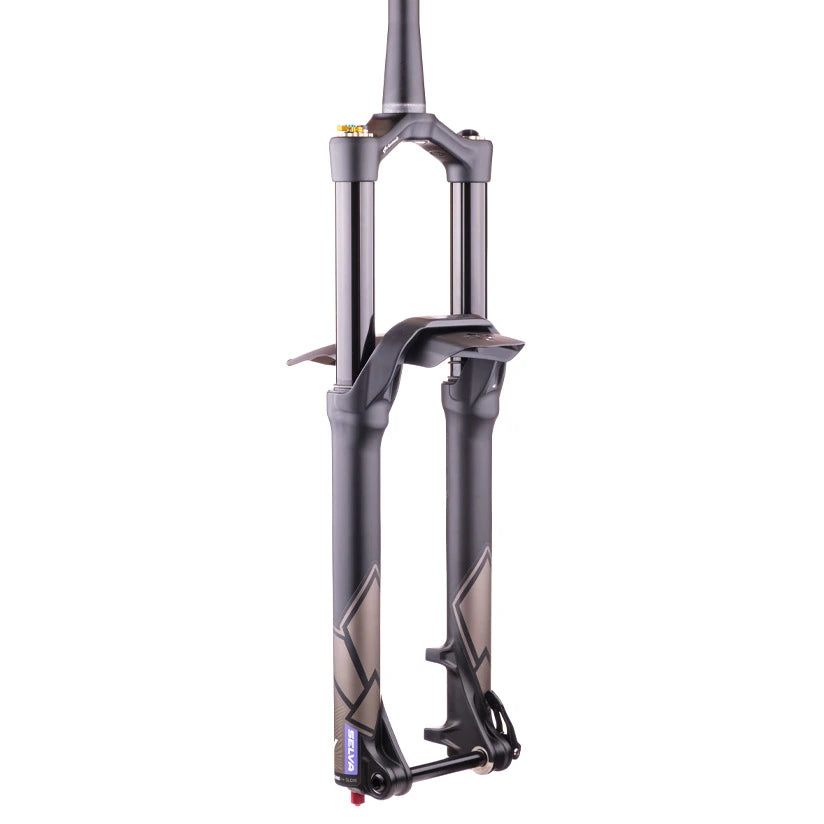

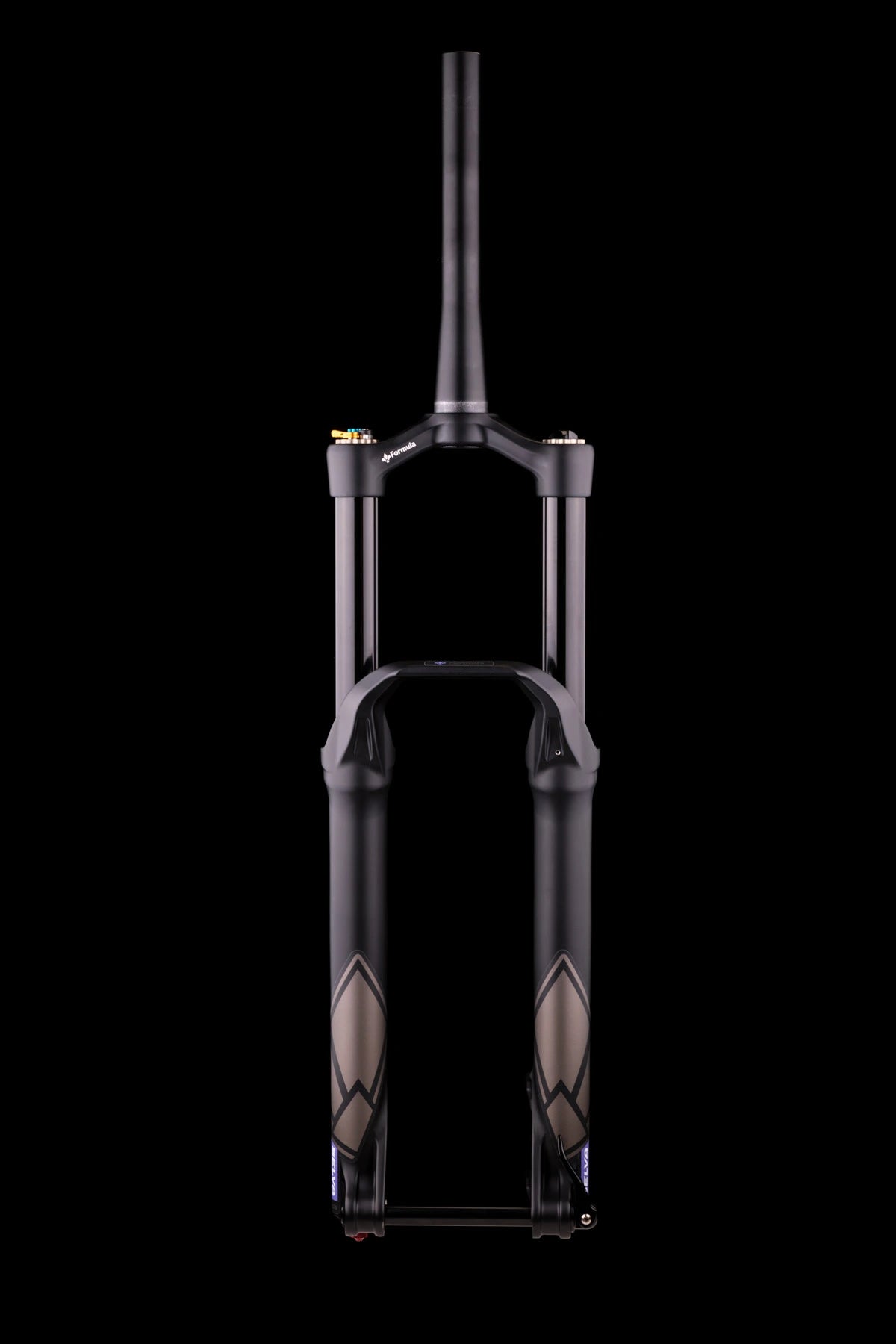

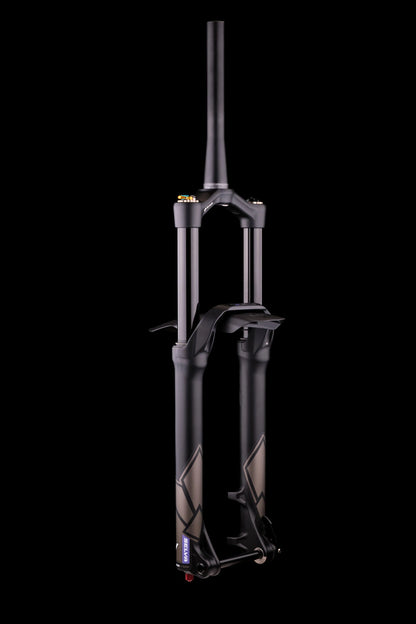

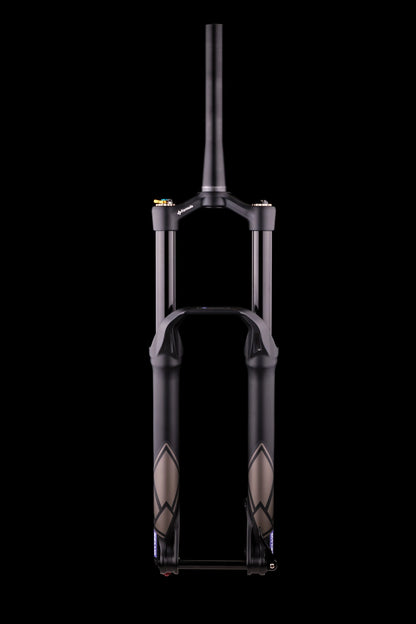

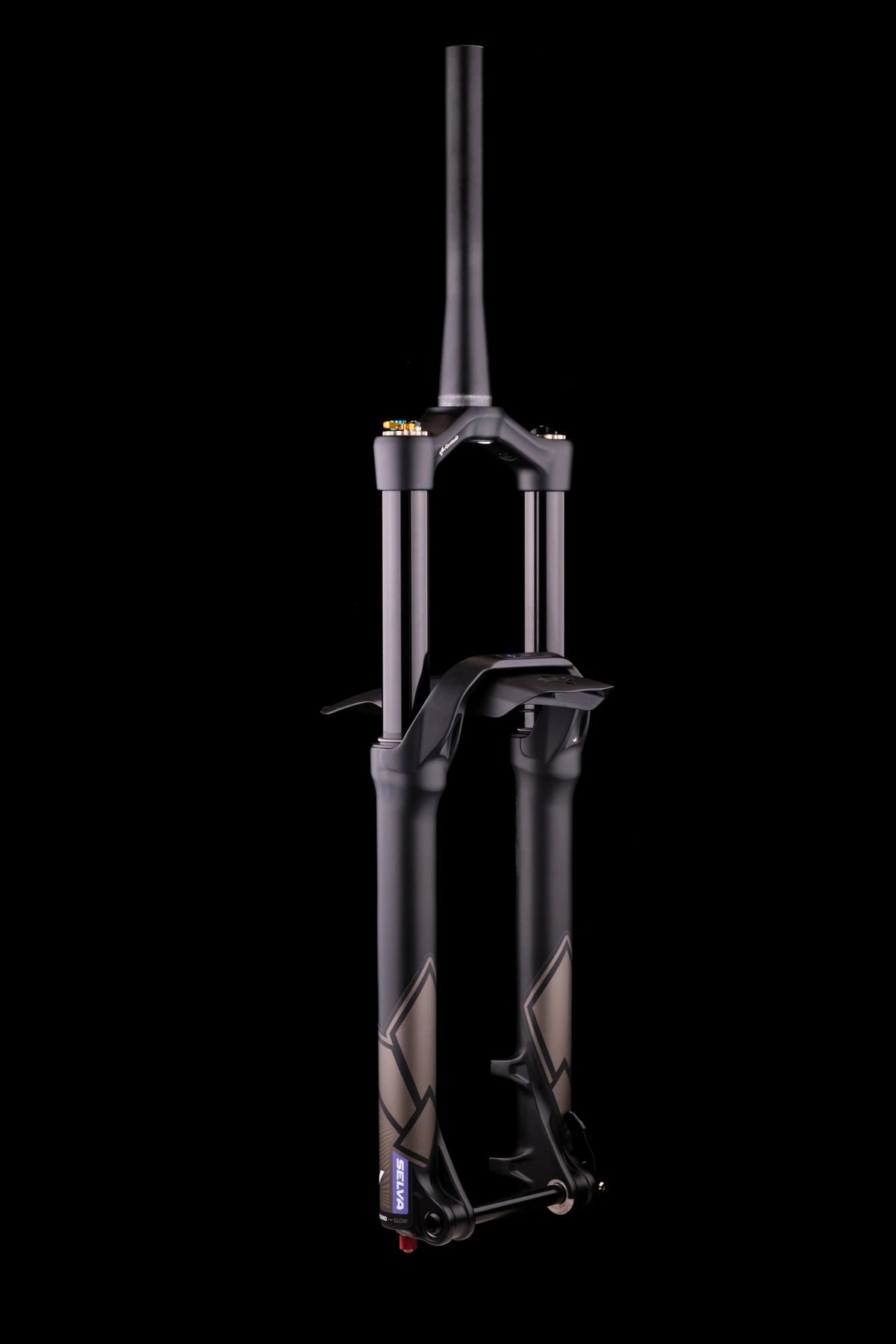

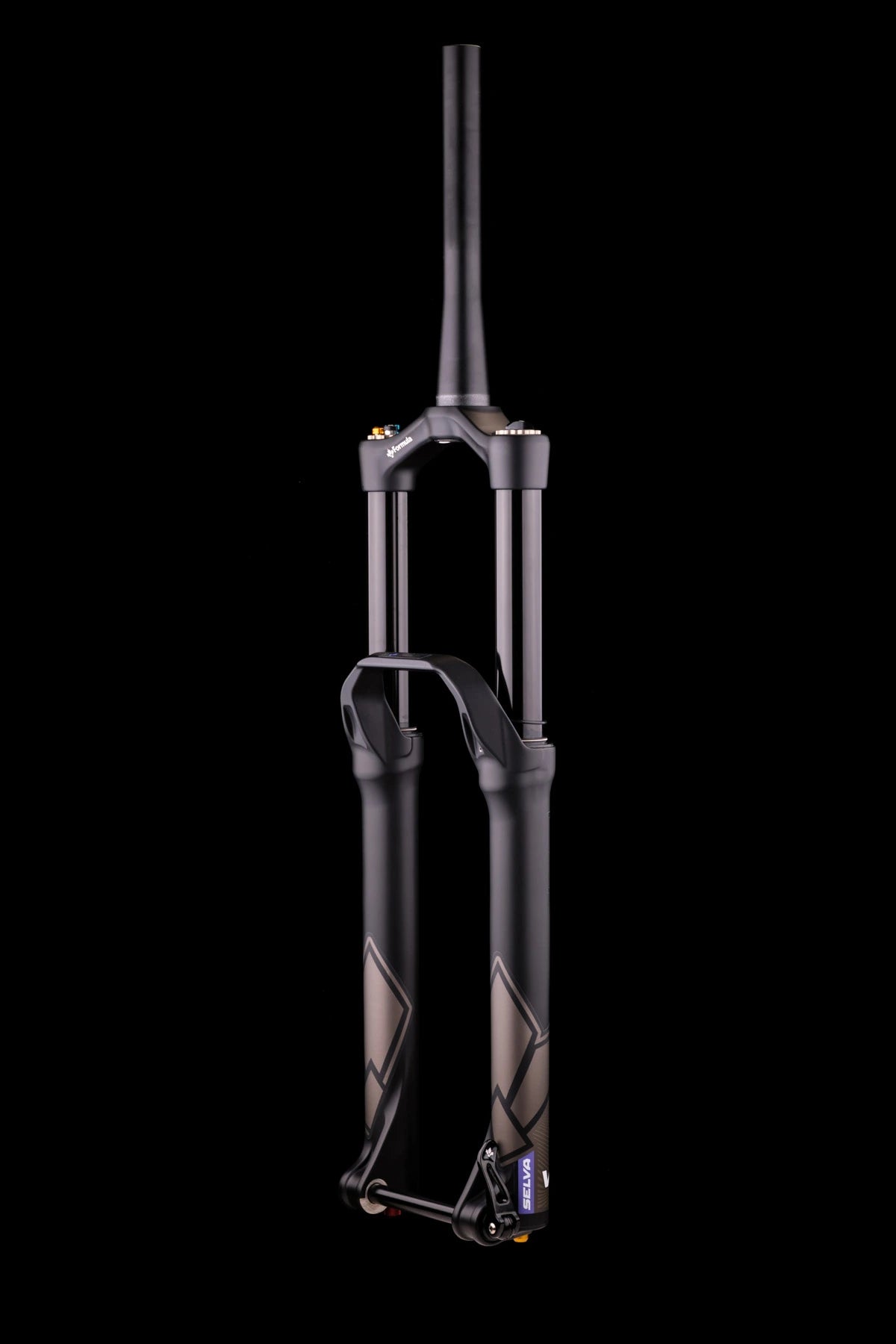

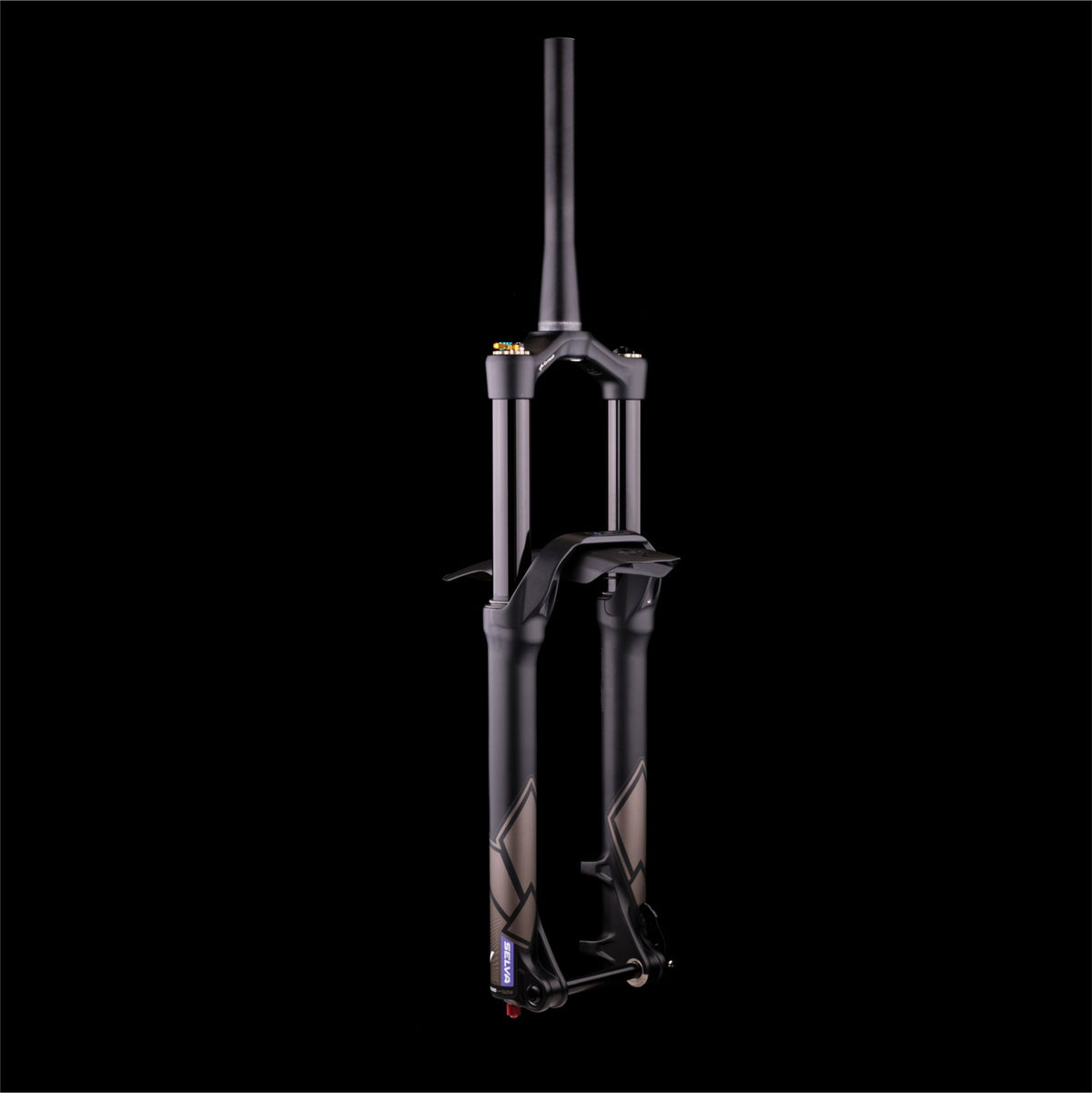

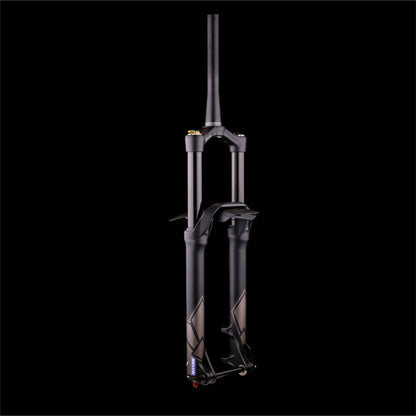

FORMULA SELVA V
Responsive Air Fork
The Selva V is a product of the long, rocky, technical trails found close to our factory in Tuscany and around the Mediterranean. These trails require a fork that is precise, responsive, consistent and comfortable.
With a new low-friction air spring, a refined chassis and a proven damper, the Selva V is all these things.
V Air Spring
The all-new V air spring uses a floating piston design to reduce friction providing a more consistent feel all the way through the stroke.
A single air valve is used to inflate both positive and negative air chambers. A unique concentric bypass valve design balances pressure between the chambers making setup simple.

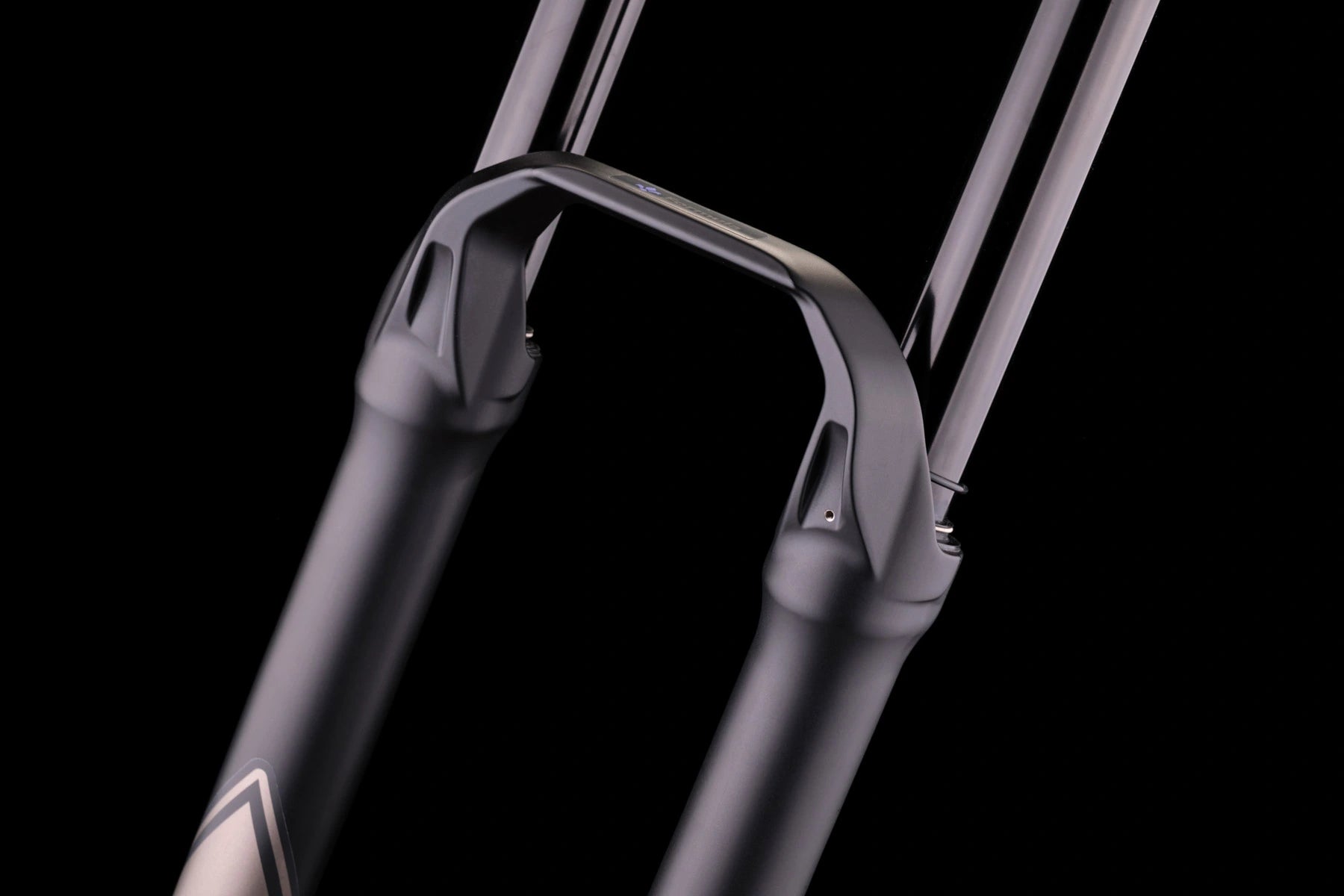

Refined Chassis
Redesigned lowers improve steering precision. 35mm stanchions make for a lighter, more comfortable fork that is less fatiguing, allowing you to ride faster for longer.
Proven Damper
The damper architecture is unchanged from the previous generation Selva. Our bladder design is sensitive, responsive and reliable.
All of this adds up to the lowest friction fork we have ever made, making this our most responsive fork ever. Find out more here.
|
TRAVEL |
|
|
Standard |
160/170/180mm (Internally Adjustable) |
|
GEOMETRY |
|
|
Axle to Crown |
583mm at 170mm of travel |
|
Fork Offset (Rake) |
43mm |
|

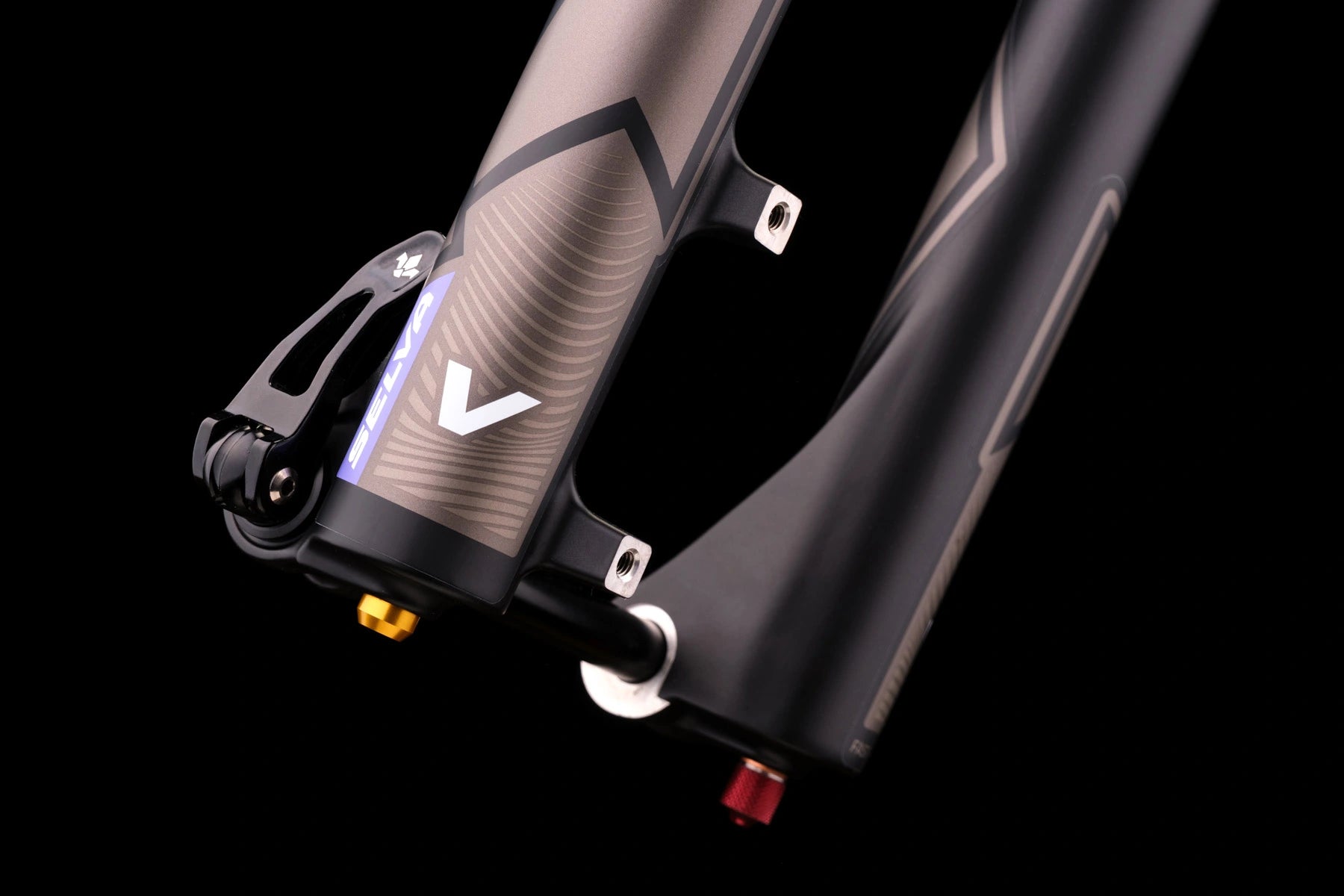

Brake Mount |
Post 180mm |
|
Max Rotor Size |
220mm |
|
CROWN |
|
|
Steerer Tube Size |
Tapered 1 1/8'' - 1.5'' |
|
Colour |
Black (matt) |
|
Material |
Hollow Forged Aluminium |
|
LOWERS |
|
|

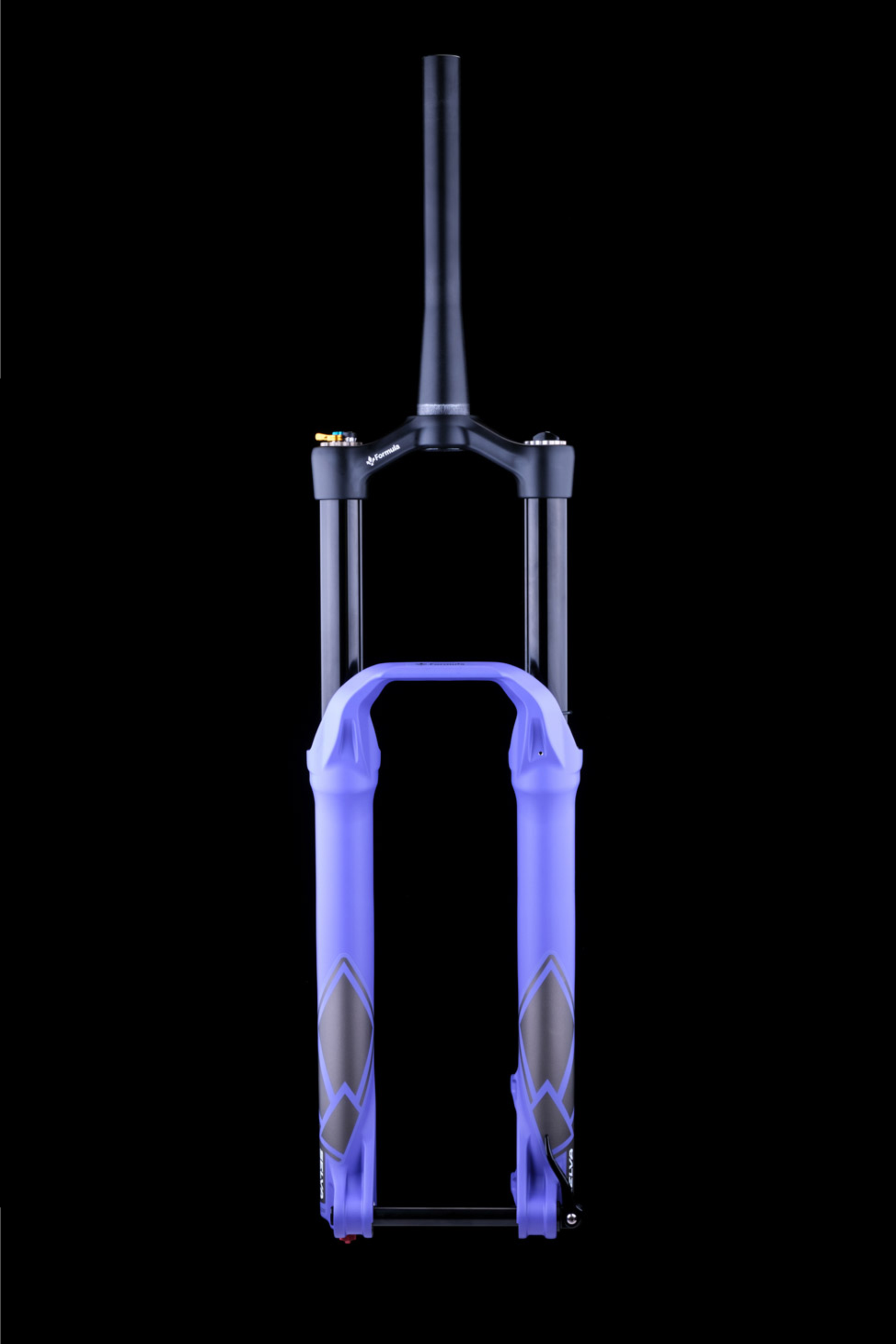

Colour |

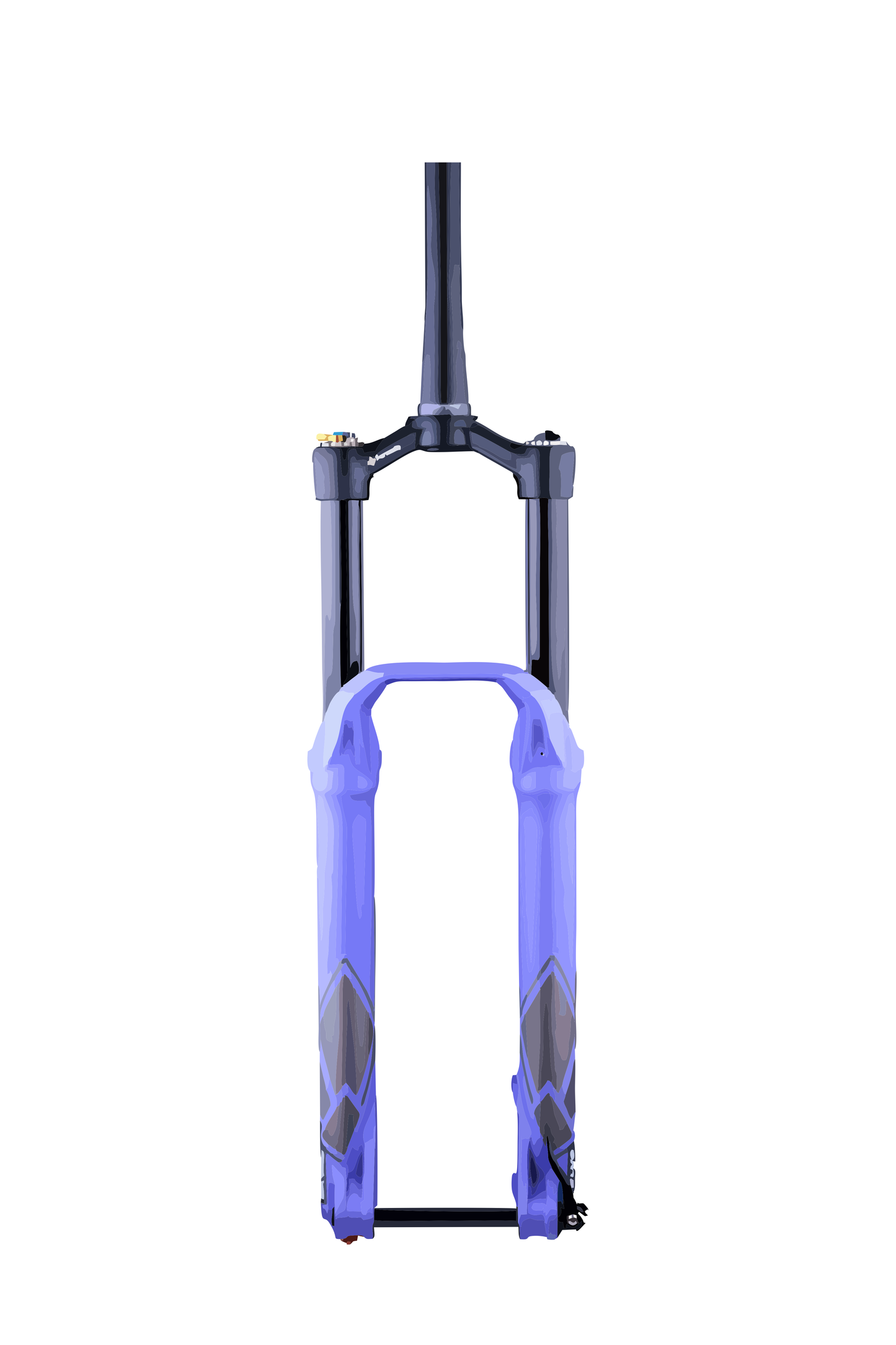

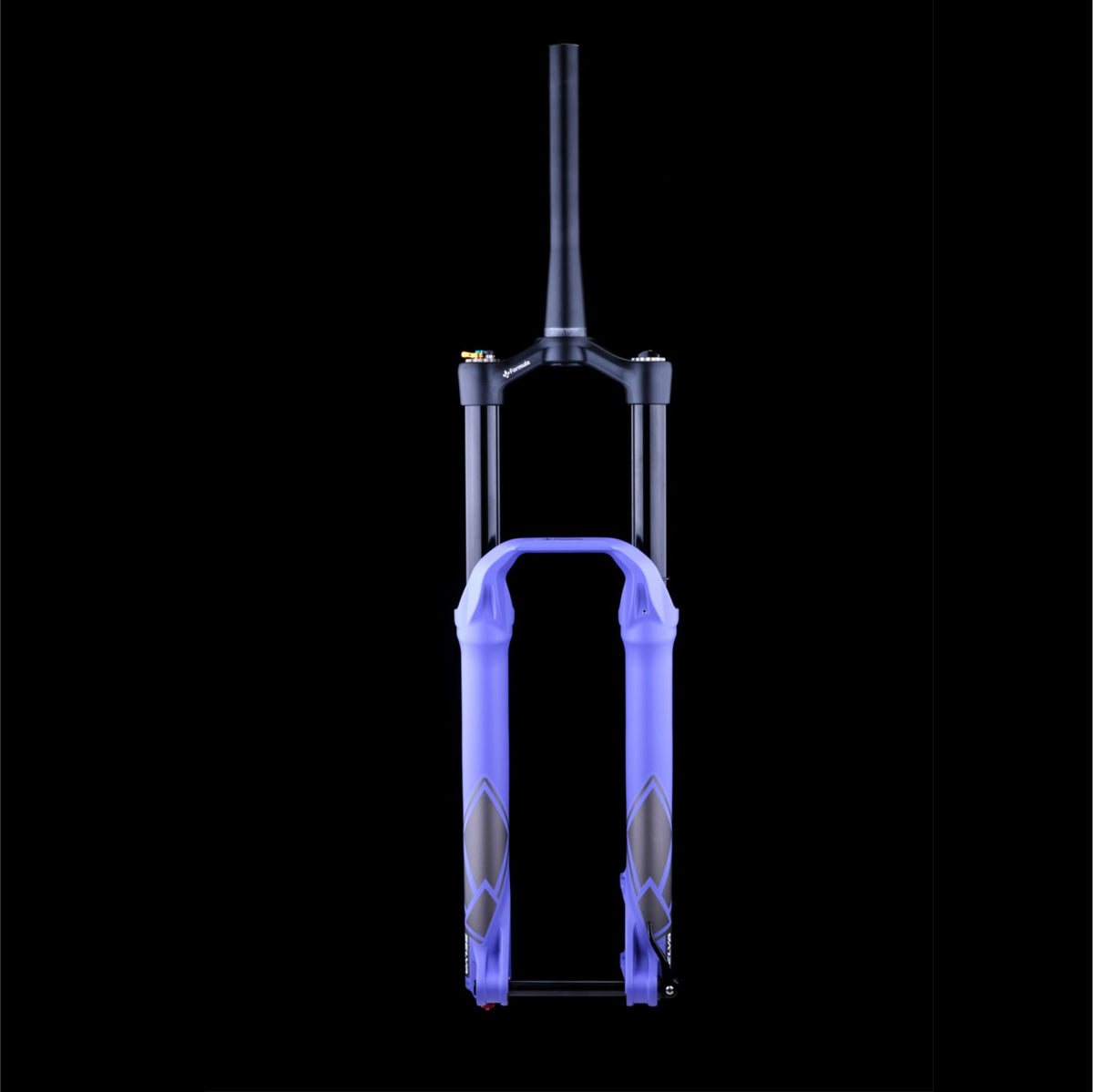

Black (matt) / Ultraviolet (matt) |
|
Dropout |
15QR BOOST |
|
Axle |
Integrated Locking System (ILS): 15QR |
|
STANCHIONS |
|
|
Diameter (Ø) |
35mm |
|
Material |
7075 Aluminum |
|
Finish |
Hard Anodized Black |
|

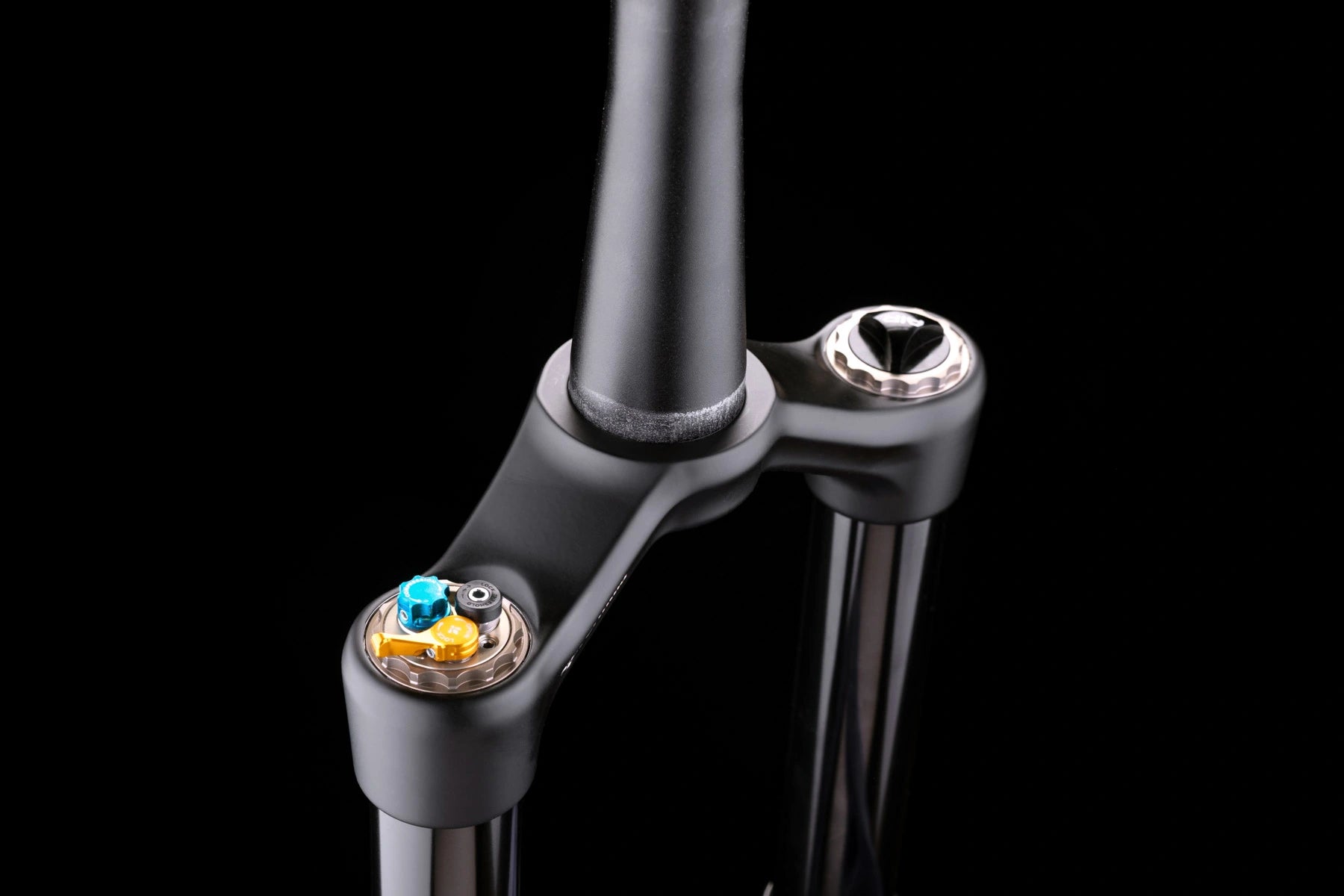

ADJUSTMENTS |
|
|

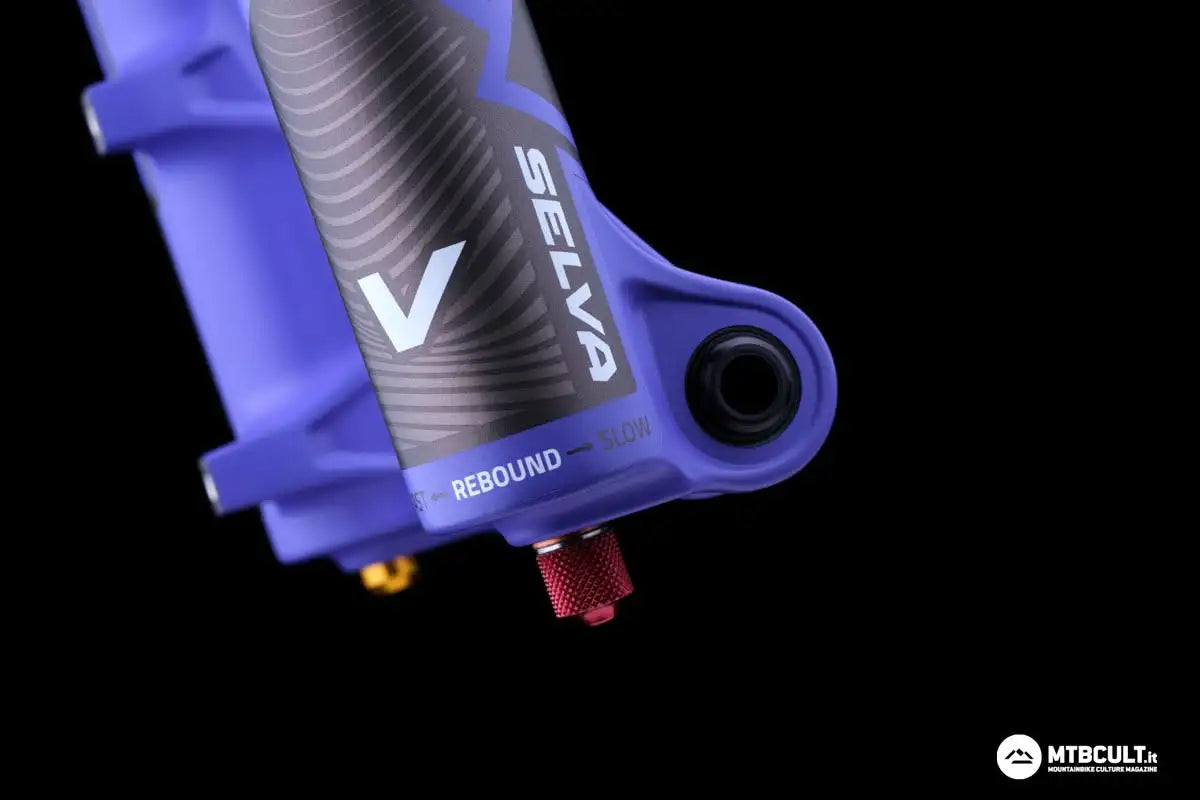

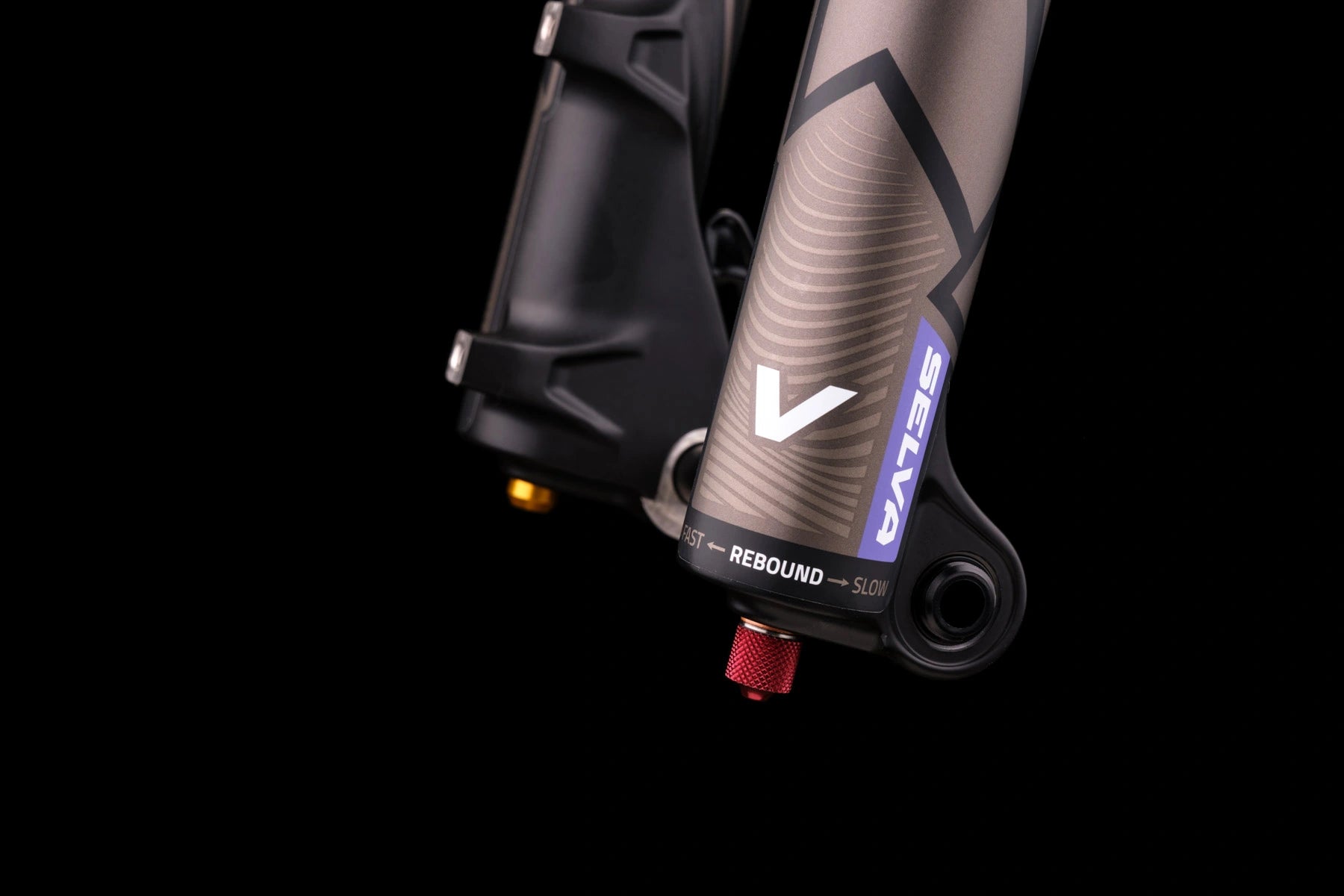

Rebound |
19 Click Adjustment |
|
Compression |
High and Low Speed 12 Click Adjustment |
|
Compression Tuning System |
Gold and Blue valves inc. (other valves optional) |
|
NEOPOS Air Volume Adjustment |
Compatible with new dedicated supports |
|
Lockout |
Crown mounted |
|
OTHER FEATURES |
|
|
Damping |
Drop-In Cartridge with Internal Floating Technology |
|
Spring type |
Dual-chamber V air spring |
|
Negative spring |
Auto inflating via concentric bypass valve |
|
WEIGHT |
|
|
Standard version |
2030g (170mm fork, no ILS or fender) |
